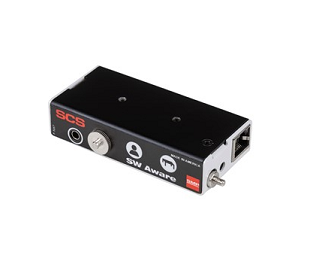

SW Aware Monitor, with Universal Power Adapter 770152

Description

Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
Ethernet Connectivity
Provides network communication with Static Management Program (SMP) to collect and report the status of the operator and worksurface mat circuits.
Park Delay Timer and Parking Snap
Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
Impedance Monitoring Technology (IMT)
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder
Enclosure with Mounting Holes
Installs in workbench and equipment environments
1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
<50 Millisecond Alarm Response Time
Identifies failures and intermittencies
Made in the United States of America
