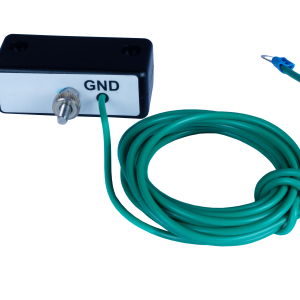

ESD COMMON POINT GROUND-CPG MB-2P

The new improved Common Point Ground CPG MB-2P is used to bring all the elements of the EPA to ground potential along with safety of operators. This model does not have sharp edges and safeguard the operators in case of contact. Elements such as bench mat, floor mat and wrist straps are connected to the common point which in turn connected to ground.

This is designed to fit below the tabletop of the workbench or shelf surface.

Wire Length: 3 M
Wire dia: 3 mm
Connectors: Banana socket type suitable for connecting two Wrist Straps.
Connection to ground: 2.5mm2 ring terminal

Application:

The common Ground Point is used to bring all the elements of the EPA to ground potential. Elements such as bench mat, floor mat and wrist straps are connected to the common point
which is in turn connected to ground.

This is designed to fit below the tabletop of the workbench or shelf surface.

Tested and Qualified at an ESD Association Certified, Product Qualification Lab.   Products are tested as per Standard Test Methods as required by ANSI ESD S20.20 (Equivalent to  IEC 61340-5-1) standards and tested @ 12% +/- 3% RH for 72 Hours or as specified in the standard test methods.
